    Each Rook cluster has some built in metrics collectors/exporters for monitoring with Prometheus. If you do not have Prometheus running, follow the steps below to enable monitoring of Rook. If your cluster already contains a Prometheus instance, it will automatically discover Rooks scrape endpoint using the standard prometheus.io/scrape and prometheus.io/port annotations.

    Prometheus Operator

    First the Prometheus operator needs to be started in the cluster so it can watch for our requests to start monitoring Rook and respond by deploying the correct Prometheus pods and configuration. A full explanation can be found in the Prometheus operator repository on github, but the quick instructions can be found here:

    kubectl apply -f https://raw.githubusercontent.com/coreos/prometheus-operator/release-0.15/bundle.yaml

    This will start the Prometheus operator, but before moving on, wait until the operator is in the Running state:

    kubectl get pod

    Once the Prometheus operator is in the Running state, proceed to the next section.

    Prometheus Instances

    With the Prometheus operator running, we can create a service monitor that will watch the Rook cluster and collect metrics regularly. From the root of your locally cloned Rook repo, go the monitoring directory:

    cd cluster/examples/kubernetes/monitoring

    Create the service monitor as well as the Prometheus server pod and service:

    kubectl create -f service-monitor.yaml
    kubectl create -f prometheus.yaml
    kubectl create -f prometheus-service.yaml

    Ensure that the Prometheus server pod gets created and advances to the Running state before moving on:

    kubectl -n rook-ceph get pod prometheus-rook-prometheus-0

    Prometheus Web Console

    Once the Prometheus server is running, you can open a web browser and go to the URL that is output from this command:

    echo "http://$(kubectl -n rook-ceph -o jsonpath={.status.hostIP} get pod prometheus-rook-prometheus-0):30900"

    You should now see the Prometheus monitoring website.

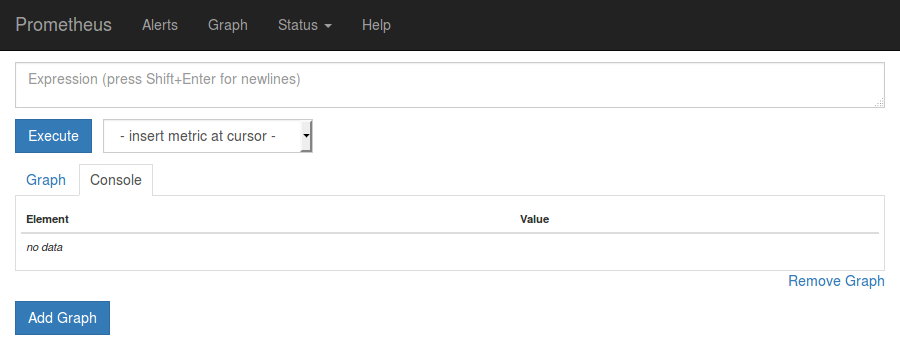

    Prometheus Monitoring Website

    Click on Graph in the top navigation bar.

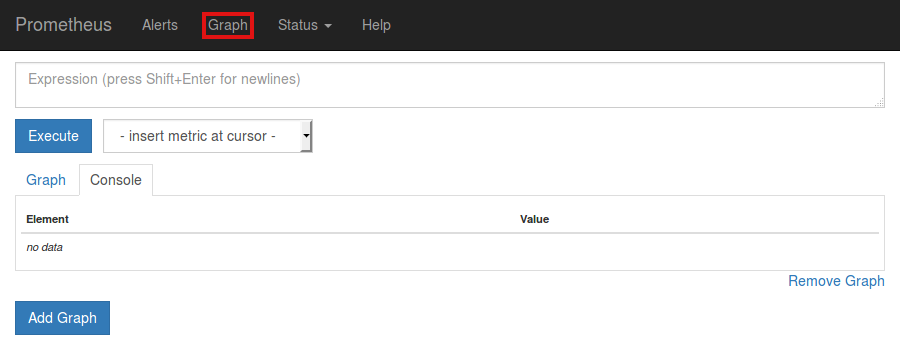

    Prometheus Add graph

    In the dropdown that says insert metric at cursor, select any metric you would like to see, for example ceph_cluster_total_used_bytes

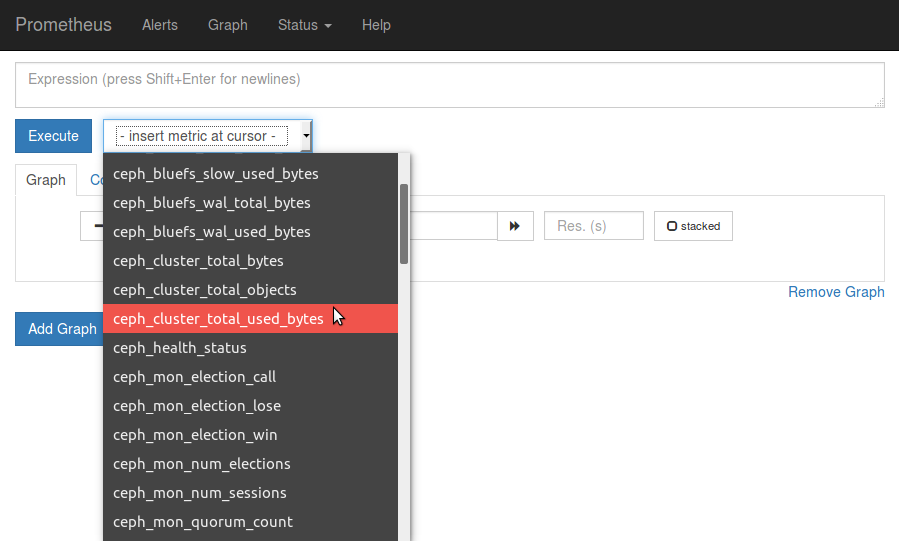

    Prometheus Select Metric

    Click on the Execute button.

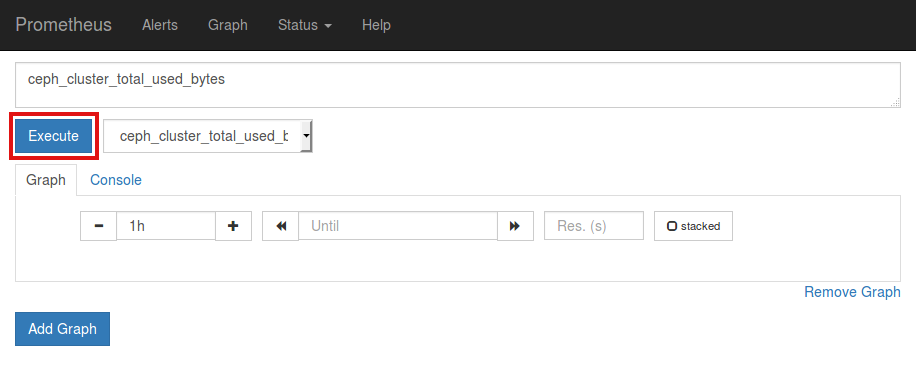

    Prometheus Execute Metric

    Below the Execute button, ensure the Graph tab is selected and you should now see a graph of your chosen metric over time.

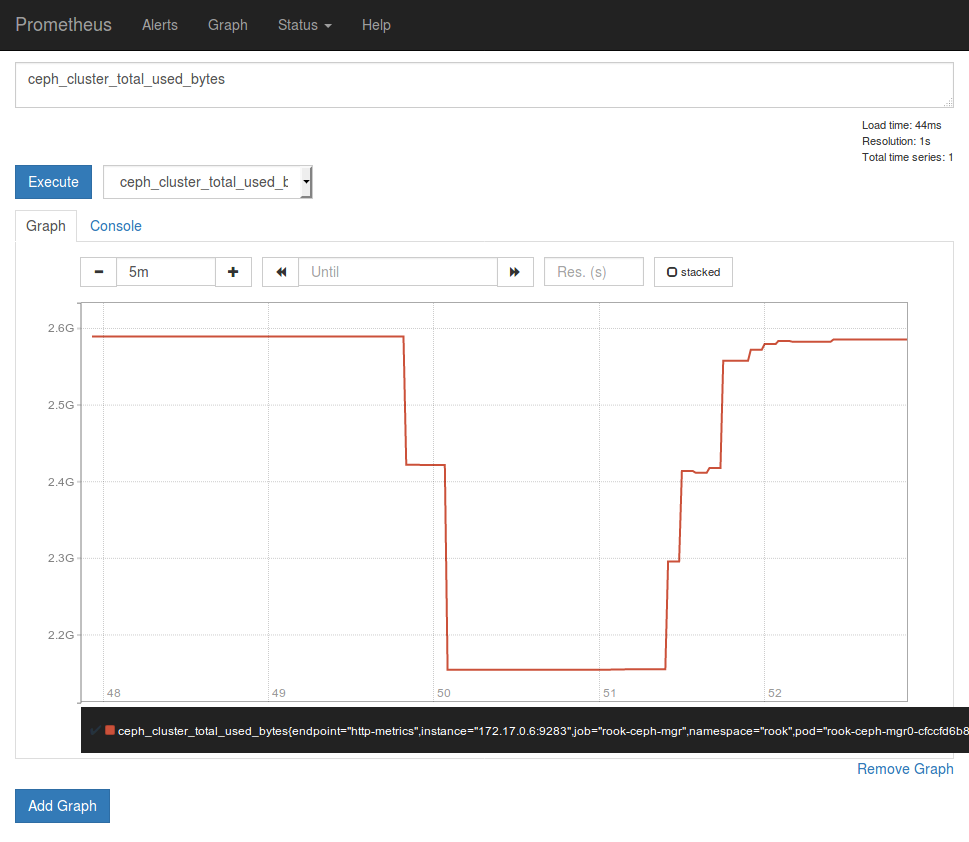

    Prometheus Execute Metric

    Prometheus Consoles

    You can find Prometheus Consoles here: https://github.com/ceph/cephmetrics/tree/master/dashboards/current. A guide to how you can write your own Prometheus consoles can be found on the official Prometheus site here: https://prometheus.io/docs/visualization/consoles/.

    Grafana Dashboards

    The dashboards have been created by @galexrt. For feedback on the dashboards please reach out to him on the Rook.io Slack.

    NOTE The dashboards are only compatible with Grafana 5.0.3 or higher.

    The following Grafana dashboards are available:


    To clean up all the artifacts created by the monitoring walkthrough, copy/paste the entire block below (note that errors about resources “not found” can be ignored):

    kubectl delete -f service-monitor.yaml
    kubectl delete -f prometheus.yaml
    kubectl delete -f prometheus-service.yaml
    kubectl -n rook-ceph delete statefulset prometheus-rook-prometheus
    kubectl delete -f https://raw.githubusercontent.com/coreos/prometheus-operator/release-0.8/bundle.yaml

    Then the rest of the instructions in the Prometheus Operator docs can be followed to finish cleaning up.

    Special Cases

    Tectonic Bare Metal

    Tectonic strongly discourages the tectonic-system Prometheus instance to be used outside their intentions, so you need to create a new Prometheus Operator yourself. After this you only need to create the service monitor as stated above.
